Keithley Rack Mount Kits Selector Guide


SELECTOR GUIDE: RACK MOUNT KITS

Instrument Fixed Single Fixed Dual Shelf Rear or Rail Support
Series 2000, Series 2300 (Battery Simulators), Series 2500, 2182A, 2700, 2701, 6220, 6221, 6485, 6487, 6514, 6517B 4288-1 4288-2 4299-7
Series 2100, Series 2400, 3390, 6430 4299-3
Series 2200 4299-7
Series 2220, Series 2230 4299-7
4299-14
Series 2260B 2260B-RMK-EIA
2600B-RMK-JIS
2290-10 4299-7
2380 Series 4299-71 2380-RM2
2280S, 2281S, 2450, 2460, 2461, DAQ6510, DMM6500, DMM7510 4299-8 4299-9 4299-142
Series 2600B 4299-1 4299-2
707B Included with the 707B
Series 3700A 4288-10
DMM2606B 4299-13

1. 2380-RM mounts 2380-500-30.
2. 4299-14 applies only to 2280S and 2281S.

Fixed Single Unit Rack Kits

(For mounting of one halfrack-width instrument or one full-rack-width instrument)

LIV curves

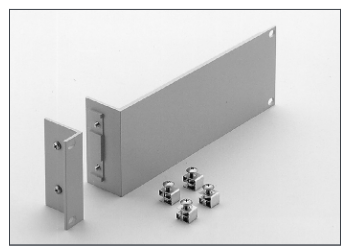

4288-1: For half-rack-width models.2U (3.5 in.) high.
For use with: Series 2000, 2182A, Series 2300, 2700, 2701, 6220, 6221, 6485, 6487, 6514, 6517B, 7001.

LIV curves

4299-1: For half-rack-width models.2U (3.5 in.) high.
For use with: Series 2600B.

LIV curves

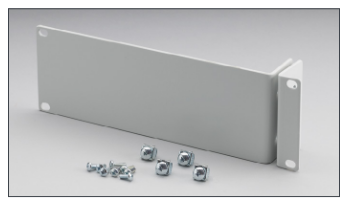

4299-3: For half-rack-width models.2U (3.5 in.) high. Allows for mounting of a 2U Keysight Instrument as well.
For use with: Series 2100, Series 2400, 3390, 6430

4299-8: For half-rack-width models.2U (3.5 in.) high.
For use with: 2450, 2460, 2461, DMM7510 (graphical display models only)

Fixed Dual Unit Rack Kits

(For mounting two or more instruments in the width of a rack)

LIV curves

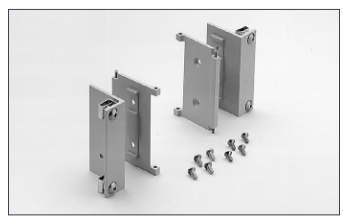

4288-2: For half-rack-width models.2U (3.5 in.) high.
For use with: Series 2000, 2182A, Series 2300, 2700, 2701, 6220, 6221, 6485, 6487, 6514, 6517B, 7001

LIV curves

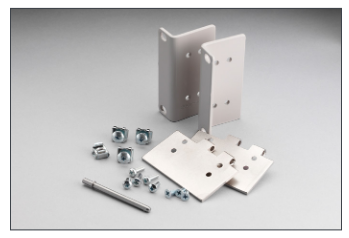

4299-2: For half-rack-width models.2U (3.5 in.) high.
For use with: Series 2600B.

LIV curves

4299-9: For half-rack-width models.2U (3.5 in.) high.
For use with: 2450, 2460, 2461, DMM7510 (graphical display models only)

2268-RMK-2: For half-rack-width models. 1U (1.75 in.) high.
For use with: Series 2268.

Shelf Rack Kits

(For mounting of one or two instruments in a rack)

2260B-RMK-EIA: Supports the EIA rack standard. Allows for full-rackwidth assembly configuration of sixth-,third-, and half-rack-width models.3U (5.25 in.) high.
For use with: Series 2260B.

2260B-RMK-JIS: Supports the JIS rack standard. Allows for full-rackwidth assembly configuration of sixth-,third-, and half-rack-width models. 3U (5.25 in.) high.
For use with: Series 2260B.

LIV curves

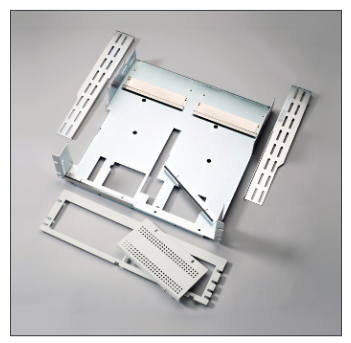

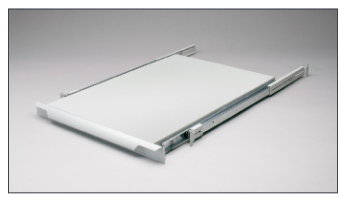

4299-7 Universal Shelf Rack Kit: Mounts 2U-high instruments in 3U-high rack space. 3U (5.25 in.) high.
For use with: Series 2000, Series 2100, 2182A, Series 2200, Series 2300, Series 2400 (Except graphical) 2700, 2701, 6220, 6221, 6430, 6485, 6487, 6514, 6517B, 7001

RMU 2U: 3U (5.25 in.) high.
For use with: 2290-5 and 2290-10.

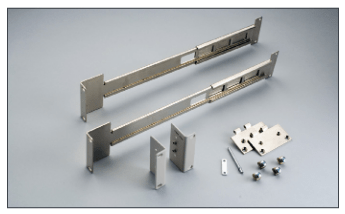

Rear/Rail Support Kits and Miscellaneous Rack Accessories

LIV curves

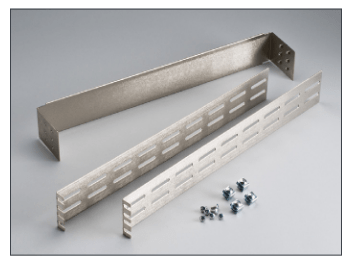

4200-KEY-RM
For use with: 4200A-SCS

LIV curves

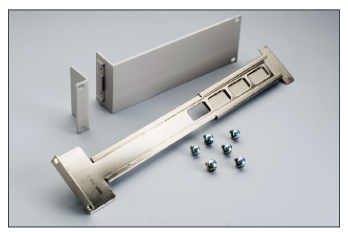

4288-10
For use with: Series 3700A

376-7589-xx: Cosmetic filler panel
For use with Series 2200.

Find more valuable resources at TEK.COM


Copyright © Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.

100622 1KW-60914-2
