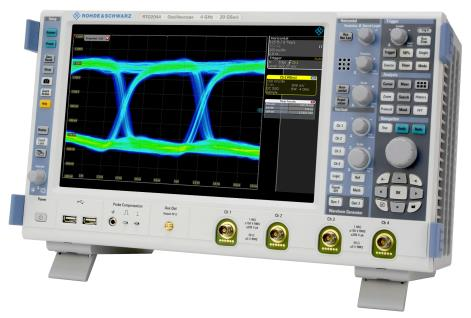

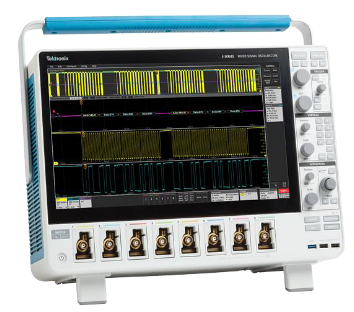

RTO2000 Series Rohde & Schwarz Oscilloscope vs. 5 Series MSO


COMPETITIVE FACT SHEET

Oscilloscope Design
Tektronix 5 Series MSO Rohde&SchwarzRTO2000
Industry First FlexChannels (up to 8) (each input is 1 analog or 8 digital) Fixed configuration: 2 or 4 analog;16 digital with MSO option
Industry First 4, 6, 8 channel models 2 or 4 channel models only
Industry First HD 1920 x 1080 15.6" Multi-touch capacitive display WXGA 800 pixel 12.1" Multi-touch display
Industry First Std. embedded OS or Opt. Windows 10 OS Windows 7 Only
12 bit Analog to Digital Converter 8 bit Analog to Digital Converter
Analog to Digital Converter (ADC)
Tektronix 5 Series MSO Rohde&SchwarzRTO2000
12 bit ADC 8 bit ADC
Handles analog or digital channel Only handles analog input
Up to 16 bits in New High Res mode Up to 16 bits in HD mode
7.6 bits ENOB @ 1 GHz High Res ~7.3 bits ENOB @ 1 GHz HD mode
High Res comes standard! HD mode costs $1,400 extra
2001 SPECIFIED CALIBRATION INTERVALS

*ENOB values are typical

2001 SPECIFIED CALIBRATION INTERVALS
2001 SPECIFIED CALIBRATION INTERVALS
Included Probing
Tektronix 5 Series MSO Rohde&SchwarzRTO2000
1 GHz passive probes (≥1GHz models) 500 MHz passive probes (≥1GHz models)
3.9pF Capacitive loading 10pF Capacitive loading
Automated compensation Manual compensation
Stores compensation data in memory Can’t store compensation data
Logic Analysis (MSO – digital channels)
Tektronix 5 Series MSO Rohde&SchwarzRTO2000
Up to 64 digital channels Up to 16 digital channels
6.25 GS/s Digital Channel Sample Rate 5.0 GS/s Digital Channel Sample Rate
500 MHz || 100K ohm || <3 pF 400 MHz || 100K ohm || 4 pF
160ps digital timing resolution 200ps digital timing resolution
±40V digital threshold level range ±8V digital threshold level range
Up to 64 adjustable thresholds (one per channel) 4 adjustable thresholds (one per 4 channels)
Key Specifications Comparison
Tektronix 5 Series MSO Rohde&SchwarzRTO2000
Max Analog Bandwidth (all channels) Up to 2.0 GHz Up to 4.0 GHz
Max Analog Sample Rate (all channels) 6.25 GS/s 10 GS/s
Upgradable Analog Bandwidth Yes Yes
Number of Analog Channels 4, 6, or 8 – with FlexChannels 2 or 4
Digital Channel Input Bandwidth 500 MHz 400 MHz
Number of Digital Channels Up to 32, 48, or 64 – with FlexChannels 16
Digital Channel Sample Rate 6.25 GS/s 5 GS/s
Number of digital channel thresholds One per digital channel (Up to 64) One per 4 digital channels (4 max)
Number of Math / Bus channels / Measurements As many as you want! 4 math / 4 bus / 8 measurements
Optional Arbitrary Function Generator (AFG) Yes – optional 1 channel, 50 MHz Yes - optional 2 channel, 100MHz
Optional DVM/ Trigger Freq. Counter Yes – Free with Registration No DVM / Counter option
Standard Analog Probes ( ≥1GHz models) 1 GHz at 3.9pF 500 MHz at 10pF
Passive Probe (auto compensate / remembers data) Yes / Yes No / No
Standard Record Length (all channels) 62.5 Mpts 50 Mpts
Max Waveform Capture Rate >500,000 wfms/s 1,000,000 wfm/sec**
ADC Resolution 12 bits 8 bits
ENOB* (at 1 GHz) 7.6 bits ~7.3 bits
Screen Size & Resolution 15.6” High Definition 1920 x 1080 12.1” WXGA 1280 x 800
Operating System Std. Embedded OS or optional SSD Windows 10 Windows 7 Only
Offline Scope Viewer Yes – TekScope Anywhere No

* ENOB tested by Tektronix at 1GHz High Res, RTO data from R&S app note in HD mode. **RTO2000 update rate requires settings like dot mode and manually set to 1kpts, the Tektronix scope is a simple front panel button press.


Copyright © Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.

06/2017 65W-61112-0
