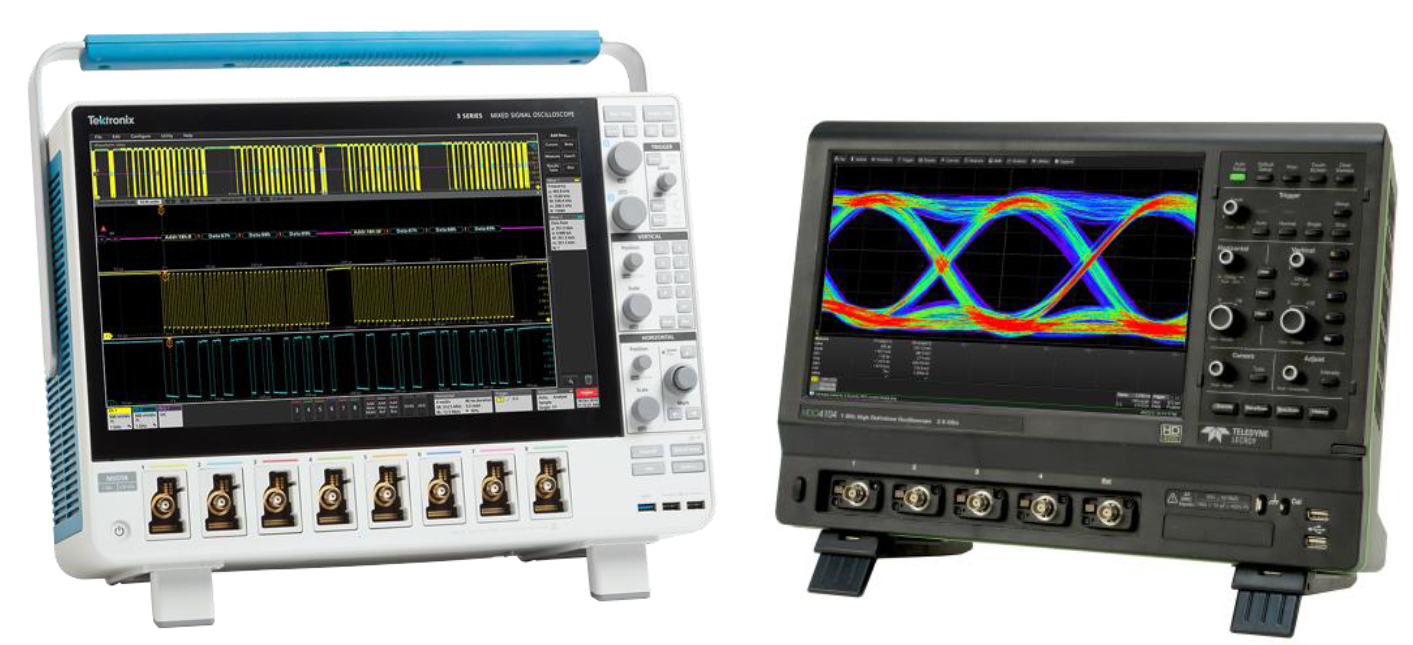

LeCroy HDO6000A/HDO8000A Series vs. 5 Series MSO Mixed Signal Oscilloscope Comparison


Oscilloscope
Oscilloscope Design
Tektronix 5 Series MSO
Industry First FlexChannels (up to 8) (each input is 1 analog or 8 digital)
Industry First 4, 6, 8 channel models
Industry First HD 1920 x 1080 15.6” Multi-touch capacitive display
Industry First Std. embedded OS or Opt. Windows 10 OS
✔ 12 bit Analog to Digital Converter
✔ Up to 2 GHz models at 6.25GS/s
✔ >500,000 wfm/s update rate
LeCroy HDO-A Series
Fixed configuration: 4 or 8 analog; 16 digital
4 or 8 channel models only
WXGA 12.1” Multi-touch display
Windows 7 Only
12 bit Analog to Digital Converter
Up to 1 GHz models at 2.5GS/s

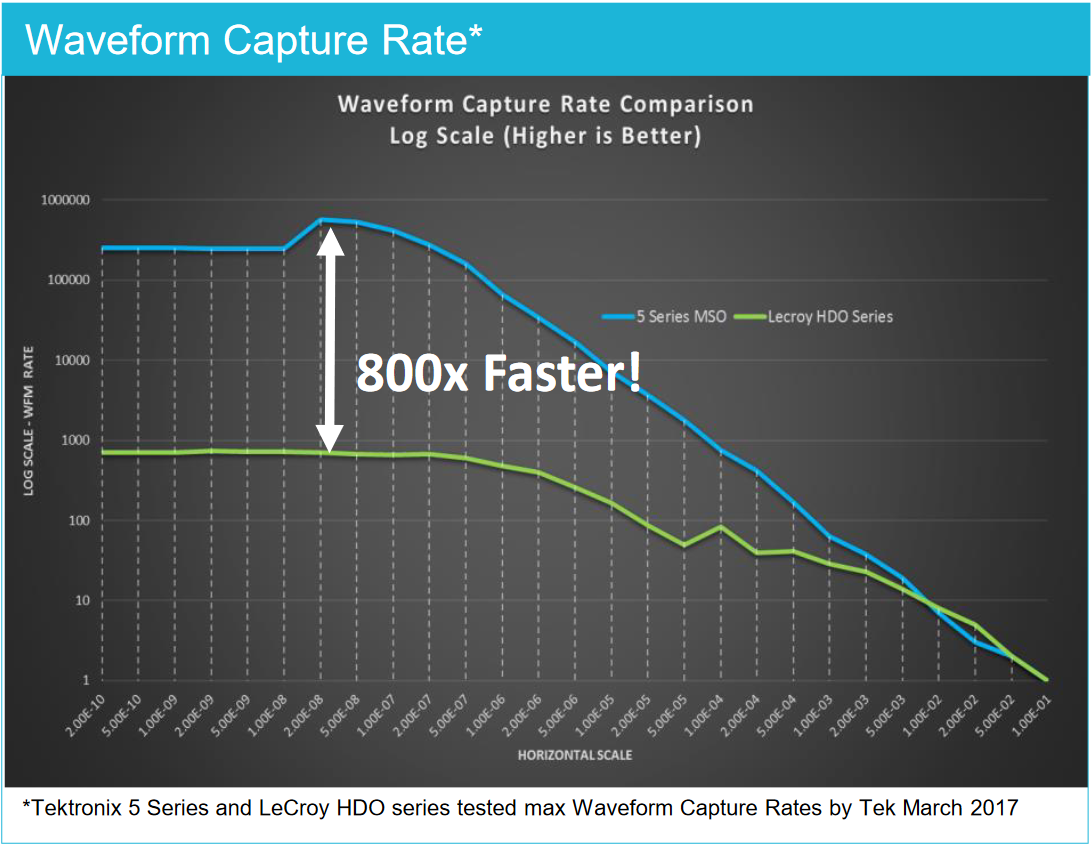

Not Specified (*tested to 700wfms/s)
wave form capture rate
Analog to Digital Converter (ADC)
Tektronix 5 Series MSO
✔ 12 bit ADC
✔ 6.25 GS/s FlexChannel (Analog or Digital)
✔ Up to 16 bits in New High Res mode
✔ Up to 8.9 bits ENOB
LeCroy HDO-A Series
✔ 12 bit ADC
2.5 GS/s Analog or 1.25 GS/s Digital
Up to 15 bits in ERes mode
Up to 8.7 bits ENOB
Included Probing
Tektronix 5 Series MSO
✔ 1 GHz passive probes (≥1GHz models)
✔ 3.9pF Capacitive loading
✔ Automated compensation
✔ Stores compensation data in memory
✔ Comes with one per FlexChannel (up to 8)
LeCroy HDO-A Series
500 MHz passive probes (1GHz models)
10pF Capacitive loading
Manual compensation
Can’t store compensation data
Comes standard with 4 probes (even on 8 channel models)
Key Specifications Comparison
Tektronix 5 Series MSO LeCroy HDO-A Series
Max Bandwidth Up to 2.0 GHz Up to 1.0 GHz
Upgradable Bandwidth Yes No
Number of Analog Channels 4, 6, or 8 – with FlexChannels HDO4000/6000 (4 channels), HDO8000 (8 channels)
Number of Digital Channels Up to 32, 48, or 64 – with FlexChannels Requires MS model to get 16 digital channels
Number of Math / Bus channels / Measurements As many as you want! 12 math / 4 buses / 12 measurements
Max Analog Sample Rate (all channels) 6.25 GS/s 2.5 GS/s
Max Interpolated Sample Rate 500 GS/s 10 GS/s*
Optional Arbitrary Function Generator (AFG) Yes – 50 MHz No AFG option
Optional DVM/ Trigger Freq. Counter Yes – Free with Registration No DVM / Counter option
Standard Analog Probes ( ≥1GHz models) One probe per channel. 1 GHz at 3.9pF Max four probes. 500MHz probes at 10pF
Passive Probe (auto compensate / remembers data) Yes / Yes No / No
Standard Record Length (all channels) 62.5 Mpts (HDO4000) 12.5 Mpts (HDO6000/8000) 50 Mpts
Max Waveform Capture Rate >500,000 wfms/s Not Specified** (measured 700 wfms/sec)
ADC Resolution 12 bits 12 bits
Max Vertical Resolution (with filtering) Up to 16 bits with New High Resolution mode Up to 15 bits with ERes
Lowest Hardware Vertical Setting 500uV/div = 5 mV Full Scale 1 mV/div = 8 mV Full Scale
Noise at 10mV Full Scale Voltage*** (Tek’s 1mV/div) ~65uV RMS ~77uV RMS
Screen Size & Resolution 15.6” High Definition 1920 x 1080 12.1” WXGA 1280 x 800
Operating System Std. Embedded OS or optional Windows 10 OS Windows 7 Only

*10GS/s with a 4 point Sinx/x interpolation, not real A/D samples
** Not specified by LeCroy, but maximum rate measured by Tektronix was 700 wfms/sec
*** Noise measured at 10mV Full Scale Voltage with High Res and Eres filters

Find more valuable resources at TEK.COM


Copyright © Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.

06/2017 65W-61111-0
