Keysight S-Series vs. 5 Series MSO Mixed Signal Oscilloscope Comparison


Oscilloscope
Oscilloscope Design

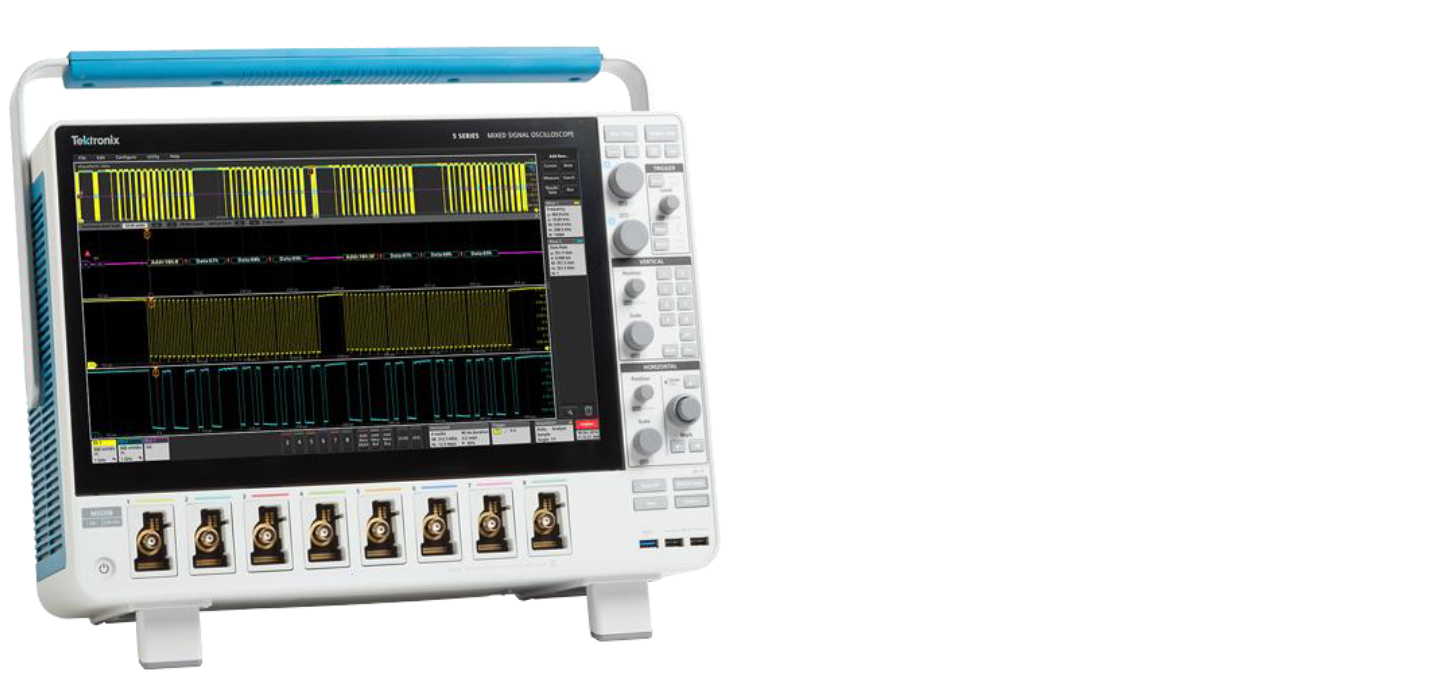

Tektronix 5 Series MSO
Industry First FlexChannels (up to 8) (each input is 1 analog or 8 digital)
Industry First 4, 6, 8 channel models
Industry First HD 1920 x 1080 15.6” Multi-touch capacitive display
Industry's Only Std. Closed Embedded OS or optional Windows 10 OS
✔ 12 bit Analog to Digital Converter
✔ >500,000 wfm/s update rate
Keysight S-Series
Fixed configuration: 4 Analog; 16 digital
4 channel models only
15” XGA 1024 x 768 Multi-touch display
Windows 7 only
10 bit Analog to Digital Converter
Not Specified (*tested to 600 wfms/s)

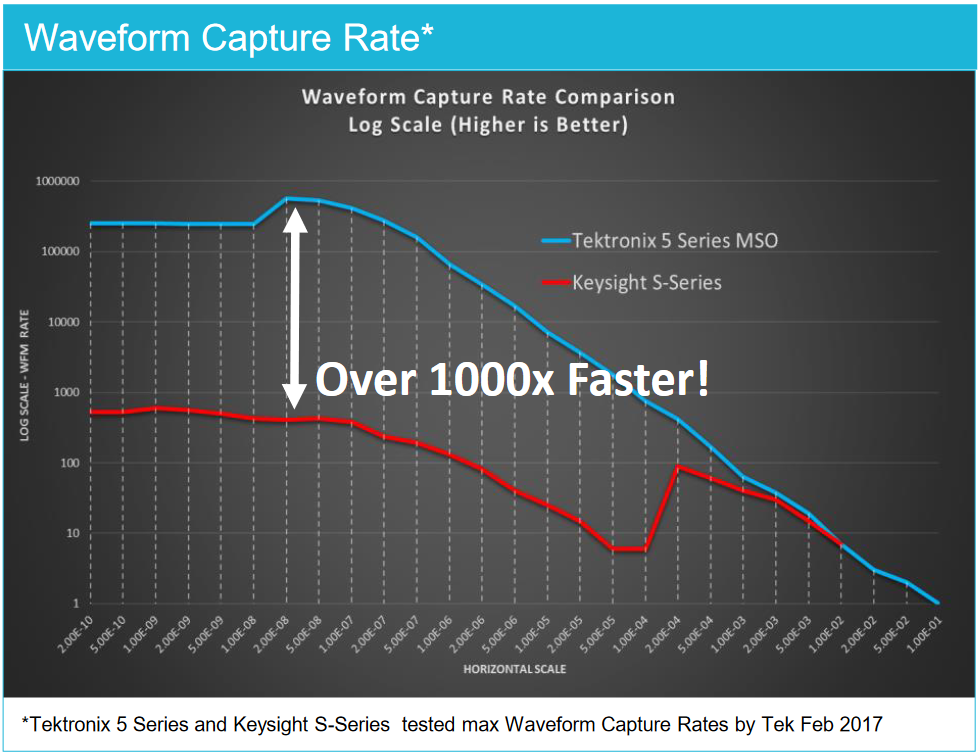

Waveform Capture Rate
Analog to Digital Converter (ADC)
Tektronix 5 Series MSO
✔ 12 bit ADC
✔ Up to 16 bits in new High Res mode
✔ 7.6 bits ENOB @ 1GHz 500mV Full Scale
Keysight S-Series
10 bit ADC
Up to 12 bits in HiRes mode
✔ 7.6 bits ENOB @ 1GHz 500mV Full Scale
Included Probing
Tektronix 5 Series MSO
✔ 1 GHz passive probes (≥1GHz models)
✔ 3.9pF Capacitive loading
✔ Automated compensation
✔ Stores compensation data in memory
✔ Hardware Dynamic Range 5mV to 100V
Keysight S-Series
500 MHz passive probes (≥1GHz models)
9.5pF Capacitive loading
Manual compensation
Can’t store compensation data
Hardware Dynamic Range 16mV to 40V

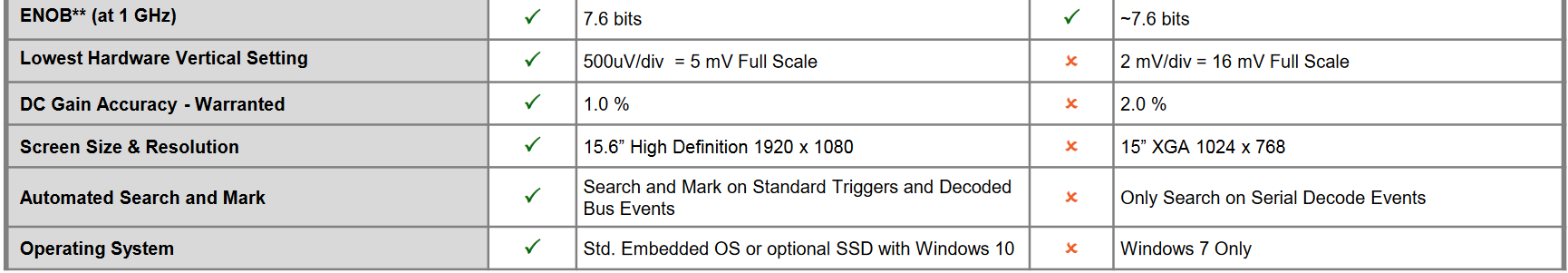

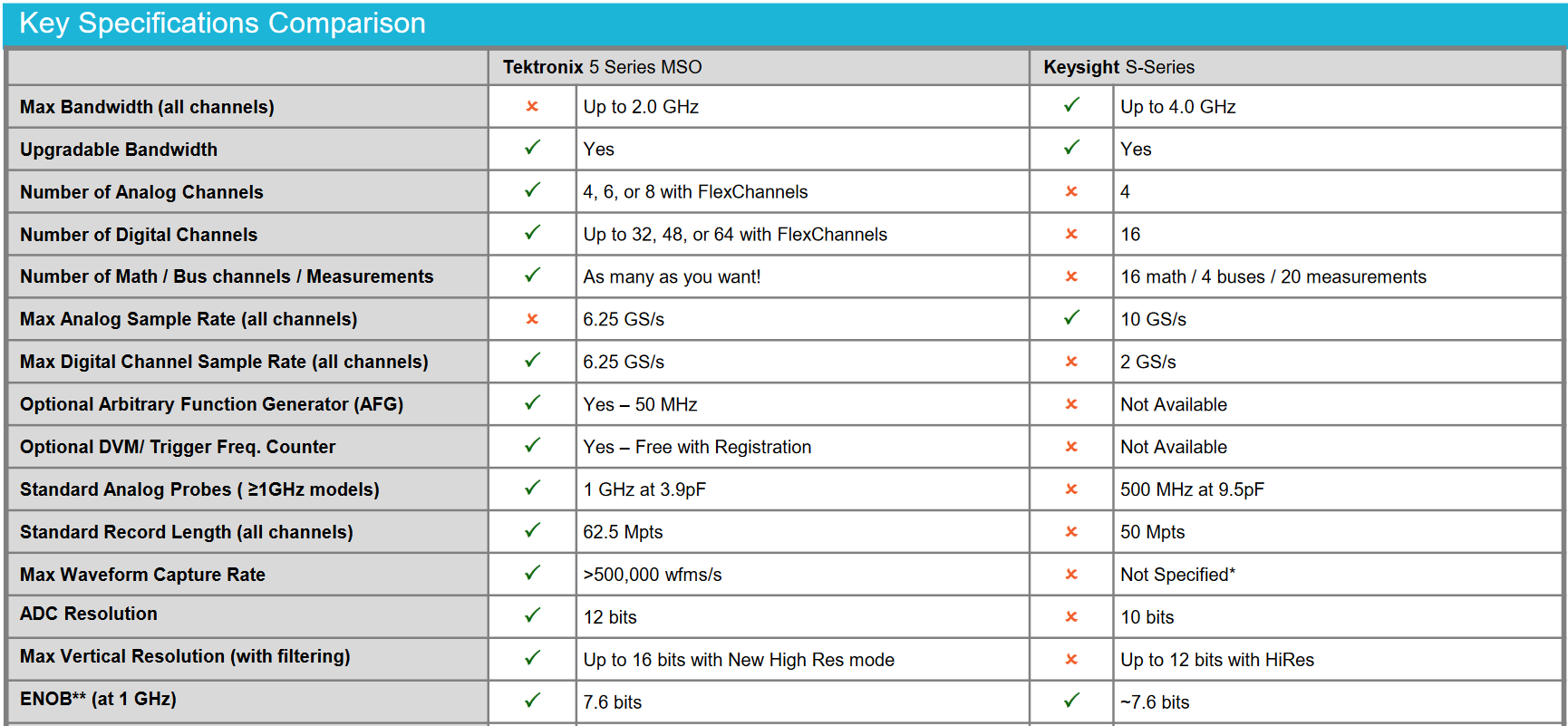

key features comparison key features comparison

* Not specified by Keysight, but maximum rate measured by Tektronix was 600 wfms/sec
** ENOB was tested by Tektronix at 500mV Full Scale and 90% of screen. Keysight is tested at 300mV Full Scale

Find more valuable resources at TEK.COM


Copyright © Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.

06/2017 65W-61108-0
