Keysight MXR Series vs. 6 Series B MSO Mixed Signal Oscilloscope Comparison


Oscilloscope
Oscilloscope Performance Specs

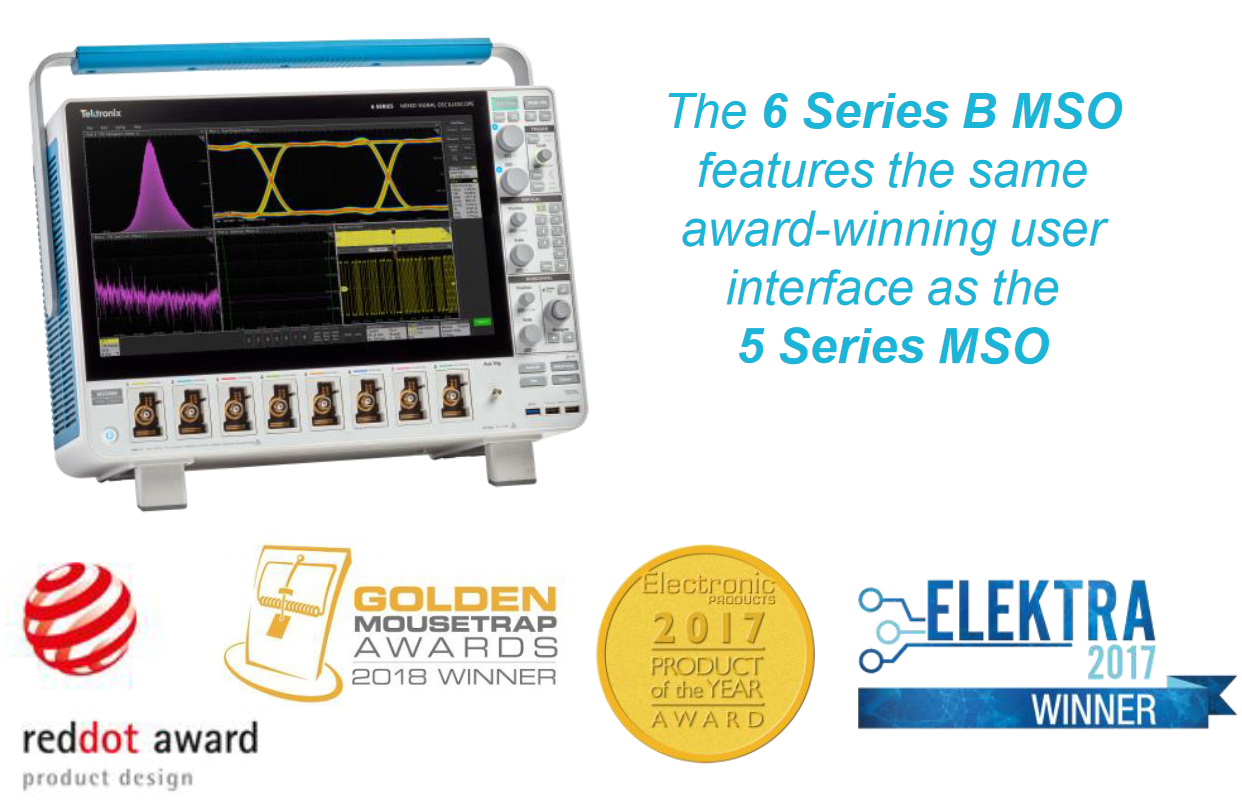

Tektronix 6 Series B MSO
✔ 10 GHz max BW & 50 GS/s max SR
✔ 10 GHz & 25 GS/s on four channels
5 GHz & 12.5 GS/s on eight channels
✔ 12-bit Analog-to-Digital Converter (ADC)
✔ Up to 64 digital channels (500MHz, 25GS/s)
✔ 500,000 wfms/s capture rate with Fast Acq
✔ All trigger types available on ALL 8 channels
Industry's Only Std. Closed Embedded OS or optional Windows 10 OS
Keysight MXR
6 GHz max BW and 16 GS/s max SR
6 GHz and 16 GS/s on four channels
✔ 6 GHz and 16 GS/s on eight channels
10-bit Analog-to-Digital Converter
16 digital channels (300 MHz, 8 GS/s)
200,000 wfms/s max capture rate
Pulse width, runt, timeout, burst, more triggers ONLY available on channels 1-4
Windows 10 OS Only
Best in Class Noise Performance1,2
Bandwidth Volts / Div 6 Series B MSO MXR
1 GHz 1 mV 51.1 µV ✔ 73 µV
10 mV 82.9 µV ✔ 99 µV
100 mV 829 µV ✔ 821 µV
1 V 6.22 mV ✔ 6.33 mV
4 GHz 1 mV 97.4 µV ✔ 132 µV
10 mV 171 µV ✔ 189 µV
100 mV 1.73 mV ✔ 1.46 mV
1 V 1.73 mV ✔ 1.46 mV
6 GHz 1 mV 124 µV ✔ 193 µV
10 mV 197 µV ✔ 251 µV
100 mV 2.39 mV ✔ 2.03 mV
1 V 19 mV ✔ 16.26 mV
Vertical Resolution and Signal Clarity
Tektronix 6 Series B MSO
✔ ENOB: 8.2 bits (1 GHz), 7.7 bits (2.5 GHz), 7.2 bits (4 GHz), 6.8 bits (6 GHz)
✔ Signal-to-Noise Ratio: -36 dB (1 mV/div), -51 dB (10 mV/div), -53 dB (1 V/div)
Keysight MXR
ENOB: 8.0 bits (1 GHz), 7.6 bits (2.5 GHz), 7.2 bits (4 GHz), 6.8 bits (6 GHz)
Signal-to-Noise Ratio: -32 dB (1 mV/div), -49 dB (10 mV/div), -51 dB (1 V/div)
Spectrum Analysis
Tektronix 6 Series B MSO
✔ Spectrum View w/ 2 GHz span FREE
    0-10 GHz center frequency FREE
✔ Simultaneous view of time and frequency domains
✔ RF vs. Time waveforms (mag, freq, phase) and RF vs. Time trigger optional
Keysight MXR
RTSA with 2 GHz span PAID OPTION
    0-6 GHz center frequency PAID OPTION
Time and frequency analysis are separate operating modes; no correlation on same input
No RF vs. Time analysis or triggering capabilities

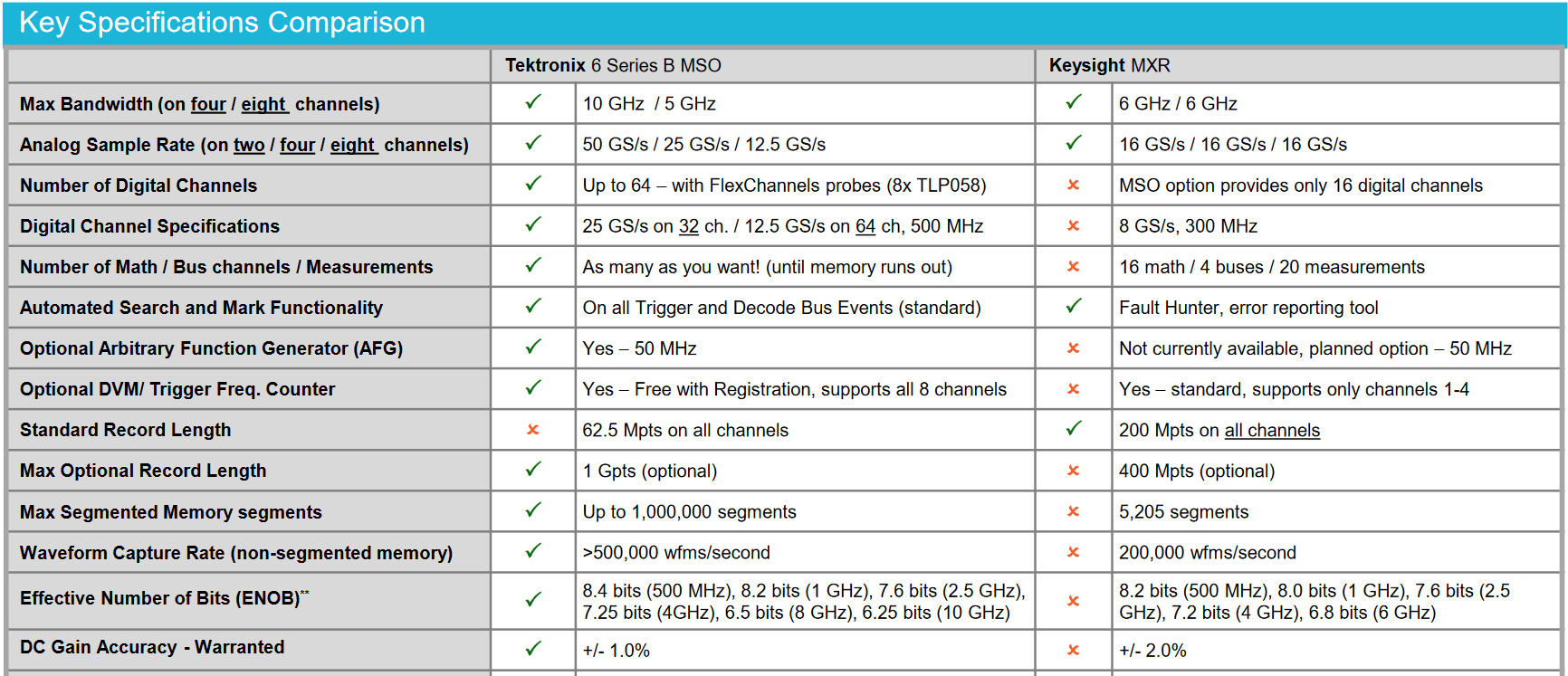

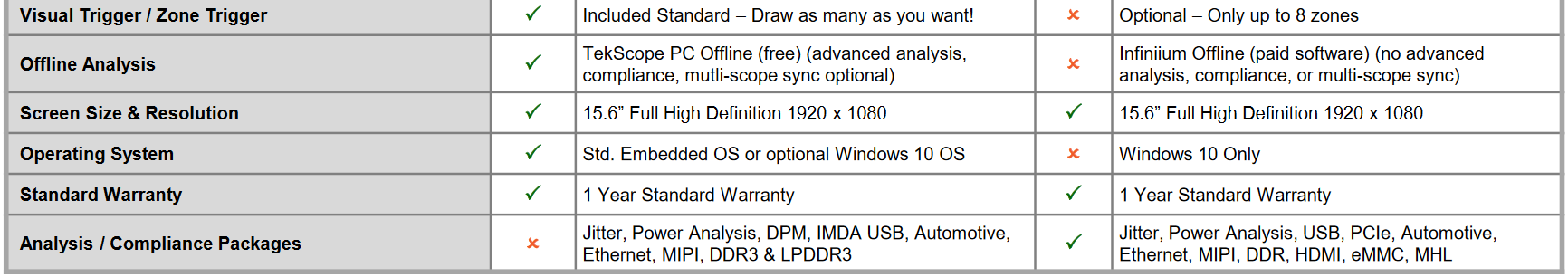

key features comparison key features comparison

** ENOB was tested at 500mV Full Scale and 90% of screen

Find more valuable resources at TEK.COM


Copyright © Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.

8/2020 48W-67742-0
