HC5 Transit Case Instructions
The HC5 is a ruggedized, waterproof, MIL-C-4150J-standard transit case designed to protect the 5/6 Series MSO instruments (MSO64, MSO64B, MSO66B, MSO68B, MSO56, MSO58, MSO54B, MSO56B, MSO58B).
此手册适用于:
HC5, MSO54B, MSO56B, MSO58B, MSO58, MSO56, MSO64, MSO64B, MSO66B, MSO68B
By downloading, you agree to the terms and conditions of the Manuals Download Agreement.
Manuals Download Agreement
ATTENTION: please read the following terms and conditions carefully before downloading any documents from this website. By downloading manuals from Tektronix' website, you agree to the following terms and conditions:
Manuals for Products That Are Currently Supported:
Tektronix hereby grants permission and license to owners of Tektronix instruments to download and reproduce the manuals on this website for their own internal or personal use. Manuals for currently supported products may not be reproduced for distribution to others unless specifically authorized in writing by Tektronix, Inc.
A Tektronix manual may have been revised to reflect changes made to the product during its manufacturing life. Thus, different versions of a manual may exist for any given product. Care should be taken to ensure that one obtains the proper manual version for a specific product serial number.
Manuals for Products That Are No Longer Supported:
Tektronix cannot provide manuals for measurement products that are no longer eligible for long term support. Tektronix hereby grants permission and license for others to reproduce and distribute copies of any Tektronix measurement product manual, including user manuals, operator's manuals, service manuals, and the like, that (a) have a Tektronix Part Number and (b) are for a measurement product that is no longer supported by Tektronix.
A Tektronix manual may be revised to reflect changes made to the product during its manufacturing life. Thus, different versions of a manual may exist for any given product. Care should be taken to ensure that one obtains the proper manual version for a specific product serial number.
This permission and license does not apply to any manual or other publication that is still available from Tektronix, or to any manual or other publication for a video production product or a color printer product.
Disclaimer:
Tektronix does not warrant the accuracy or completeness of the information, text, graphics, schematics, parts lists, or other material contained within any measurement product manual or other publication that is not supplied by Tektronix or that is produced or distributed in accordance with the permission and license set forth above.
Tektronix may make changes to the content of this website or to its products at any time without notice.
Limitation of Liability:
TEKTRONIX SHALL NOT BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR FOR INFRINGEMENT OF INTELLECTUAL PROPERTY) ARISING OUT OF THE USE OF ANY MEASUREMENT PRODUCT MANUAL OR OTHER PUBLICATION PRODUCED OR DISTRIBUTED IN ACCORDANCE WITH THE PERMISSION AND LICENSE SET FORTH ABOVE.
Read Online
Transit case description
The HC5 is a ruggedized, waterproof and dust tight (MIL-C-4150J) transit case specifically designed to provide travel and storage protection for the 5/6 Series MSO instruments.
The case protects instruments from shock, vibration, and moisture. The case also has room for the accessories pouch (for probes, adapters, and manuals).
Other features include an automatic air pressure equalization control valve for use during air transport, and security rings for use with locks (locks not included).

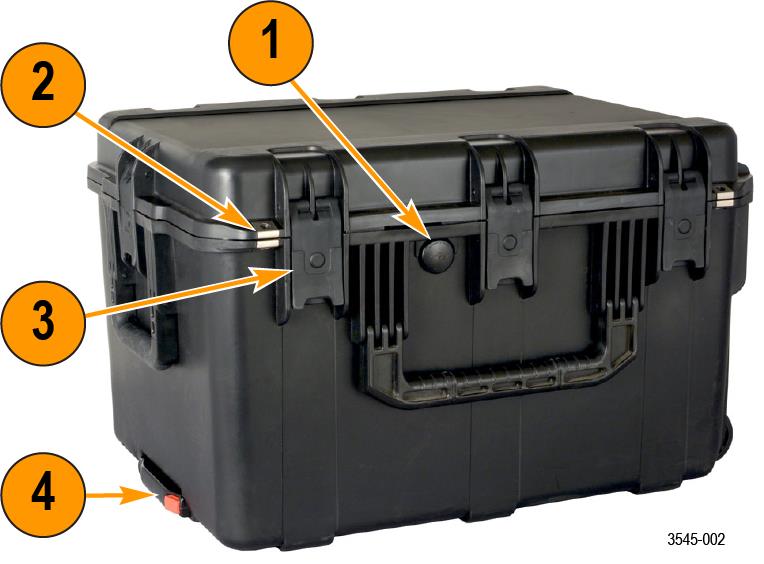

- Automatic air pressure valve
- Security rings (two)
- Latches (five)
- Extending handle
| Specification | Description | ||
|---|---|---|---|
| Material | Ultra-High Impact Polypropylene/Black, Polyurethane foam lining | ||
| Shipping Weight (with foam) | 24.62 lbs. (11.17 kg) | ||
| Exterior Dimensions | Length | Width | Height |
| 25.63 inches (65.09 cm) | 19.50 inches (49.53 cm) | 15.63 inches (39.69 cm) | |
Safely rotate the handle
Use the correct process to eliminate the chance of pinching your thumb or rear-panel-connected cables while rotating the handle.
 | WARNING:Hold the top of the handle to rotate the handle on the instrument. Do not hold the handle from the sides and rotate, as this can pinch the base of your thumb between the handle and the case. |
| CAUTION:If you have routed any cables between the handle and the case, be careful when rotating the handle so that you do not pinch the cables. |
Packing instructions
Use these instructions to install the hard cover, pack the instrument, and unpack the instrument.
The transit case consists of a heavy duty outer shell and an inner layer of foam. The inner foam consists of a permanent ring of foam and one removable foam piece.

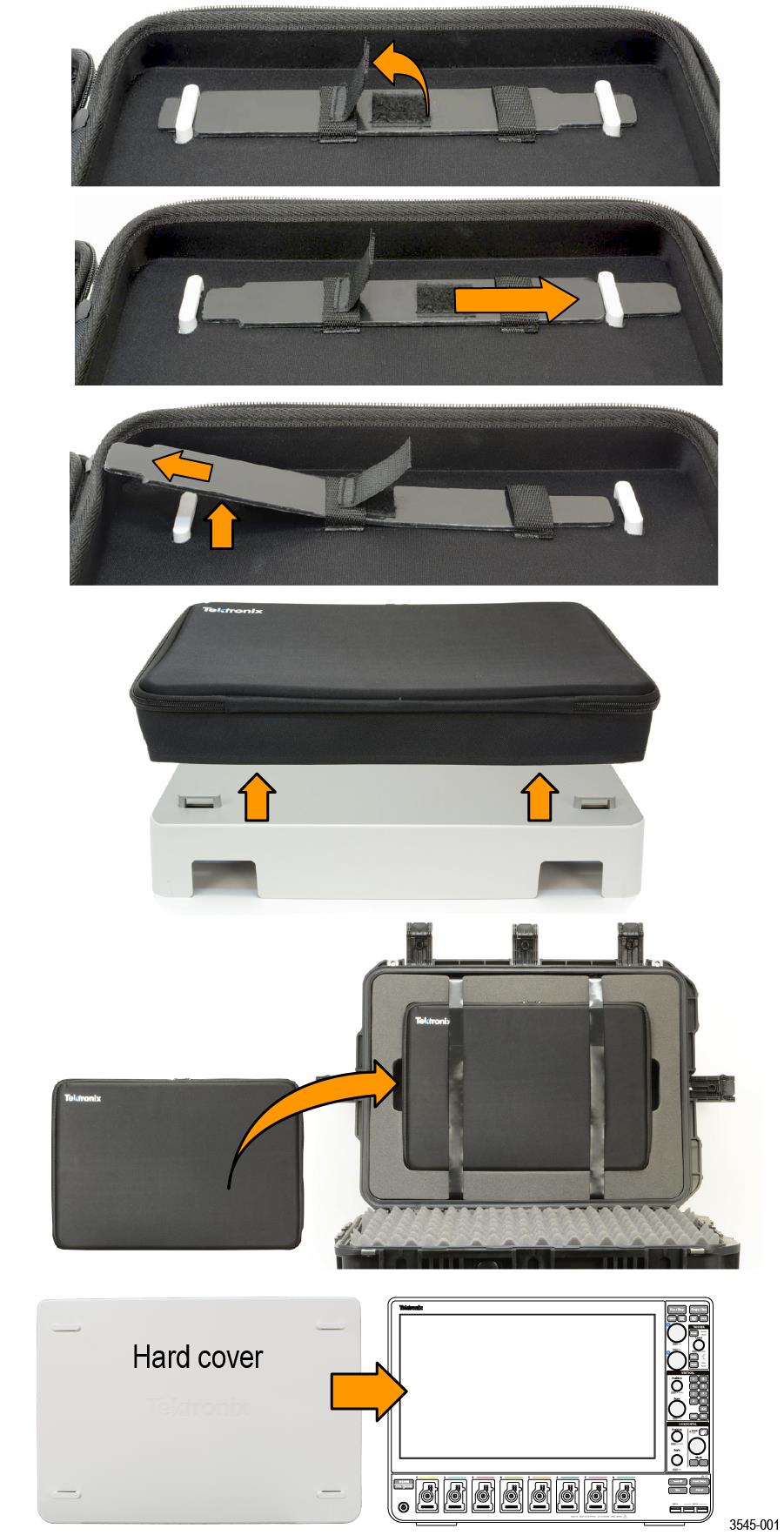

Install the cover
Remove the pouch from the front cover and install the hard cover on the instrument.

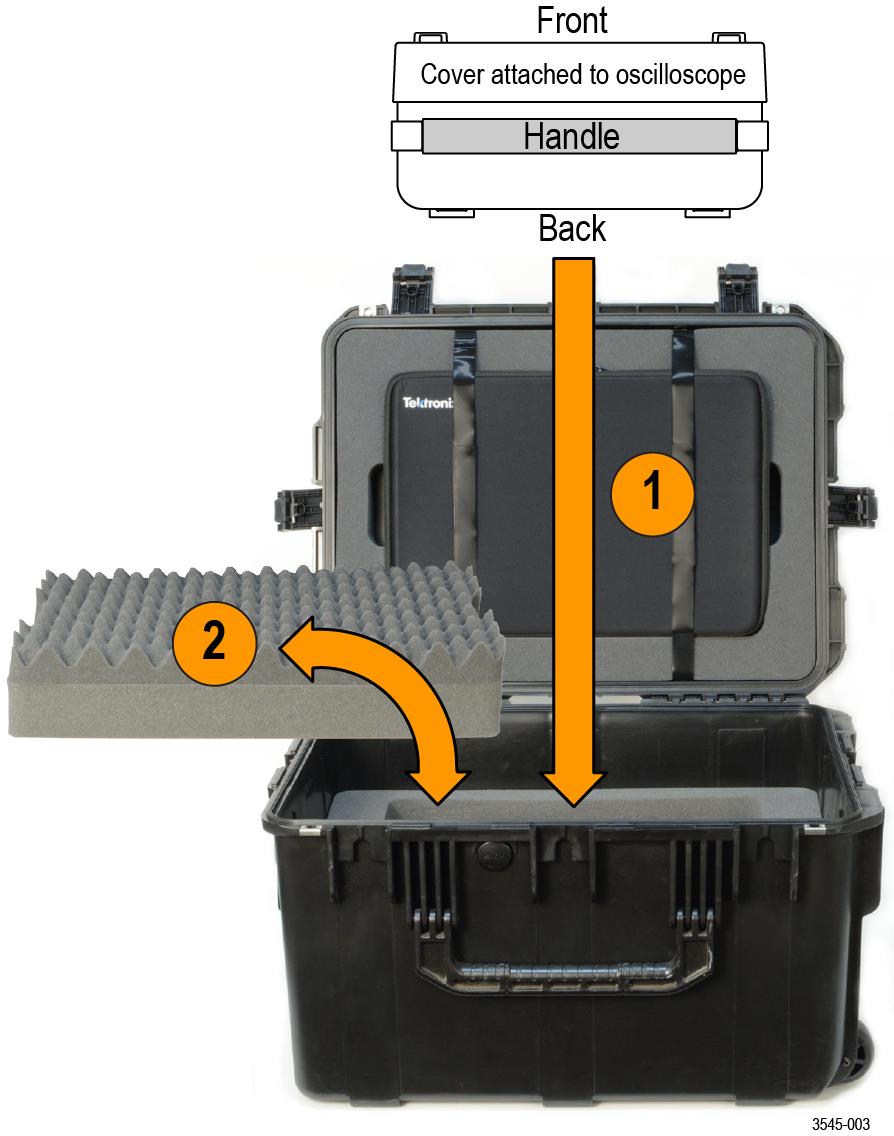

Pack the instrument
- Remove the foam piece and pack the instrument (with hard cover attached) rear panel first.
- Put the foam back on top of the instrument.
Unpack the instrument
To remove the oscilloscope from the case, grab the handle and pull and rotate the oscilloscope up and out from the foam liner.
Help us improve our technical documentation. Provide feedback on our TekTalk documentation forum.
