18GHz大电流偏置器PSPL5585产品技术资料
18GHz大电流偏置器PSPL5585产品技术资料
The PSPL5585 High Current Bias Tee is intended for frequency domain, high current applications. Unlike most high current bias tees that typically are specified for only an octave band, this bias tee can typically cover a decade. The DC input is a solder terminal feed-thru capacitor.
Key performance specifications
- 2 GHz to 18 GHz
- 100 V, 6 A
Typical performance

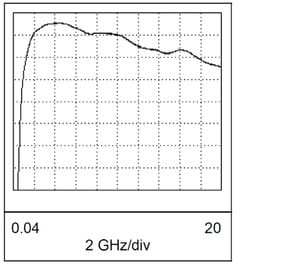

Insertion Loss, S21. 0.5 dB/div. top line is the 0 dB reference.

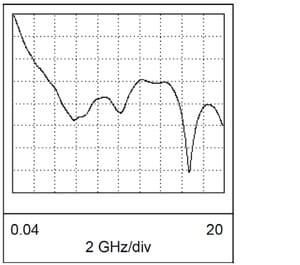

Return Loss, S11. 5 dB/div, top line is the 0 dB reference.
Specifications
| Parameter | Symbol | Units | Minimum | Typical | Maximum | Comments |
|---|---|---|---|---|---|---|
| Impedance | Z | ohms | 50 | |||
| Frequency range | f | GHz | 2 to 18 4 to 10 | IL 10 dB IL 15 dB | ||
| Insertion loss | S21 | dB | 0.4 | At 5 GHz | ||
| Input (AC) Return loss | S11 | dB | 20 | Mid band, AC port | ||
| DV voltage | V | V | 100 | |||
| DC current | I | A | 6 | |||
| Capacitance (bypass) | C | nF | 2 | |||
| Capacitance | C | nF | 1 | |||
| Inductance | L | nH | 6 | |||
| Resistance | R | ohms | 0.01 | |||
| RF power | P | W | 20 | Average power | ||
| Isolation | S13 | dB | >40 | |||
| DC path bandwidth | fc,DC | MHz | 2 | |||
| Temperature | T | °C | -55 | +125 | Storage and operating | |
| RF connectors | SMA jacks (f) | |||||
| DC connector | Solder pin | |||||
| Warranty | One year | |||||
- Mechanical dimensions
Ordering information
Models
- PSPL5585
- BIAS TEE, 2-18 GHz, 100 V, 6 A
