15 GHz Bias Tee

PSPL5580 Datasheet

米乐m6网页版登录入口对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态。

更多信息

在线阅读:

PSPL5580 Datasheet

The PSPL5580 is a broadband coaxial bias insertion tee and DC blocking capacitor designed to pass fast rise pulses without waveform distortion. The rise time is 28 ps with a –3 dB bandwidth extending from 10 KHz to 15 GHz. The PSPL5580 is designed to handle DC currents up to 2 A. The PSPL5580 is supplied with an external choke mounted to a terminal strip and an additional inductive circuit on an external PCBA.

Key performance specifications
  • 10 kHz to 15 GHz
  • 28 ps rise time
  • 50 V, 2 A

Typical performance

PSPL5580-Datasheet--772885-9-N

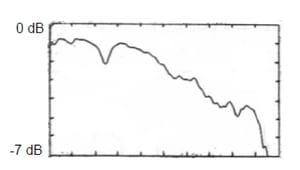

1 dB/div and 2 GHz/div Insertion Loss

PSPL5580-Datasheet--772885-10-N

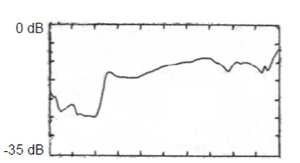

5 dB/div and 2 GHz/div Return Loss

PSPL5580-Datasheet--772885-11-N

10 dB/div and 2 GHz/div Isolation (AC-DC)


PSPL5580-Datasheet--772885-12-N

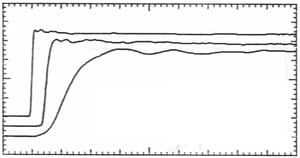

Top to bottom: 500 ps/div, 100 ps/div, and 20 ps/div 10 ps Step Response



PSPL5580-Datasheet--772885-13-N

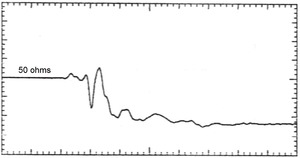

5% rho/div and 200 ps/div 35 ps TDR of AC port

Specifications

Parameter Symbol Units Minimum Typical Maximum Comments
Impedance Z ohms   50
Upper 3 dB frequency fc,h GHz 10  15
Lower 3 dB frequency fc,l kHz   10
Rise time tr ps   28  35  10 - 90%
Insertion loss S21 dB     0.1 - 3 GHz, ±0.5 dB
Input (AC) Return Loss S11 dB RL > 15 dB - 1 dB / GHz * f (GHz) 0.1 < f < 10 GHz
Refl. Coefficient (35 ps TDR) Γ %   +8  -13    t ≤ 100 ps
t > 100 ps
DC voltage V V     50
DC current I A
Capacitance C µF   0.22    - 50%, + 80%
Inductance L mH   1.1    ±25%
Resistance R ohms   0.8
RF power P W     2.5  Average power
Isolation S13 dB   30
DC path bandwidth fc,DC kHz
RF Connectors SMA jacks (f)
DC Connector Wires to PC Board and DC 1
Warranty One year

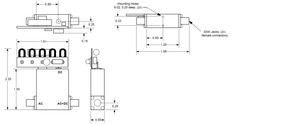

Mechanical dimensions


PSPL5580-Datasheet--772885-14-N

Dimensions in inches, Tolerance = 0.01

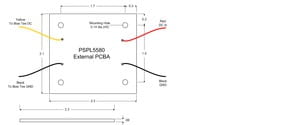

PSPL5580-Datasheet--772885-15-N

1 The PSPL5580 consists of a coaxial unit, external coil and a separate pc board. These are hi-z circuits. To prevent undesired HF resonances, do not use coax or long wires. If the pc board is not used, the low frequency cut-off is 500 kHz.

Ordering information

Models
PSPL5580
BIAS TEE, 15 GHz, 50 V, 2 A
