PSPL5100 Inverting Transformer Datasheet

PSPL5100 Datasheet

米乐m6网页版登录入口对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态。

更多信息

在线阅读:

PSPL5100 Datasheet

The PSPL5100 Inverting Transformer rise time is 15 ps with a -3 dB bandwidth from 200 kHz to 23 GHz. It passes fast rise time pulses with a minimum of waveform distortion. A flat top pulse passing through the inverter has less than 2% sag in 15 ns. The PSPL5100 can also be used for RF and microwave applications.

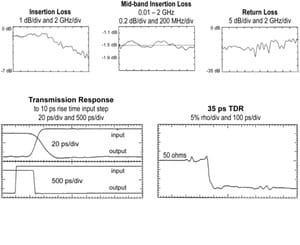

Typical performance

PSPL5100-Datasheet-670010-10-N

Specifications

Parameter 1 Value
Rise time (10%-90%) 15 ps,
Bandwidth (-3 dB) >20 GHz
Low Frequency Cutoff 200 kHz (-3 dB)
Insertion Loss 1.5 ±0.5 dB, 0.01
Impedance 50 Ω
Refl. Coeff. (35 ps TDR) -15% rho
Return Loss (f >16 dB, >12 dB min
Delay 0.6 ns
Sag Time Constant 800 ns (1/e)
Core Saturation -50% @ 500 mA DC
Inductance 20 μH
Max. Power 10 W average
Turns Ratio 1:1
Connectors SMA jacks (f)
Weight 5 oz. (142 g)
Dimensions 4.8 in x 1.5 in x 1.1 in (12.2 cm x 3.8 cm x 2.8 cm)
Warranty One year

1 All parameters listed are typical unless max/min guaranteed limits are provided. Measurements made with 50 Ω matched line/load at output ports

Ordering information

Models
PSPL5100
Inverting Transformer
