PSPL5882 40 Gb/s Broadband Amplifier Datasheet

PSPL5882 Datasheet

The PSPL5882 is extremely broadband, covering over 6 decades from 25 kHz to 35 GHz. It also demonstrates a very clean time domain response, resulting in high quality 40 Gb/s eye diagrams. The PSPL5882 includes internal reverse voltage protection, power supply regulation, and sequencing circuitry, making it insensitive to power supply voltage variation and application sequence.

Key performance specifications

Electro-Absorption Modulator driver or optical receiver amplifier
Linear amplifier with 16 dB gain
25 kHz to 35 GHz bandwidth
2.7 V_amp eye amplitude
9 ps rise time

Typical 40 Gb/s eye measurements

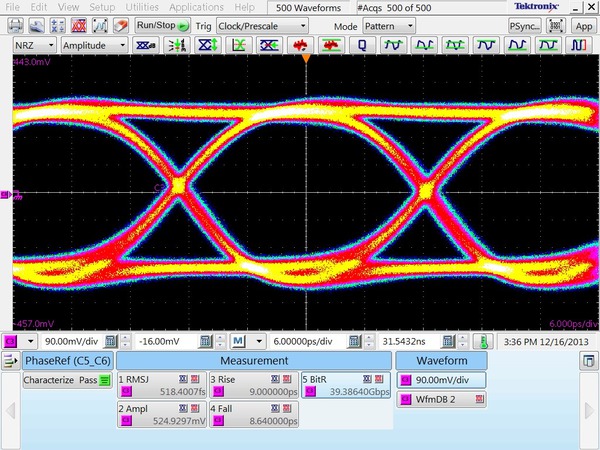

Input from Tektronix PPG4001, PRBS = 2³¹–1, 525 mV

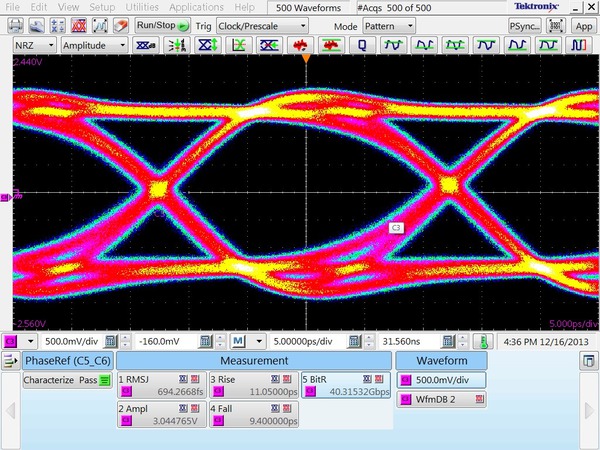

Output amplitude, 3 V

Typical performance

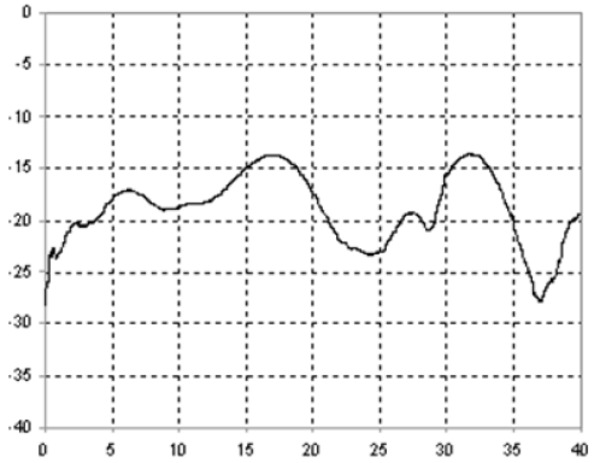

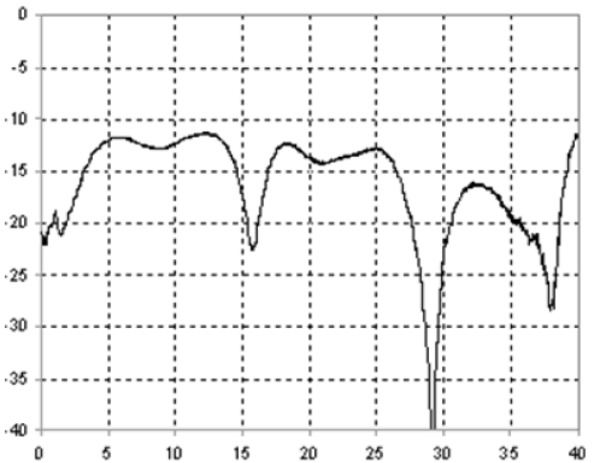

S11, 5 dB/div, 5 GHz/div

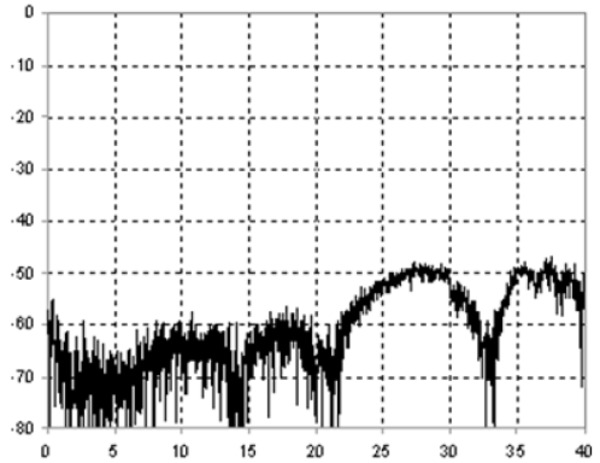

S12, 10 dB/div, 5 GHz/div

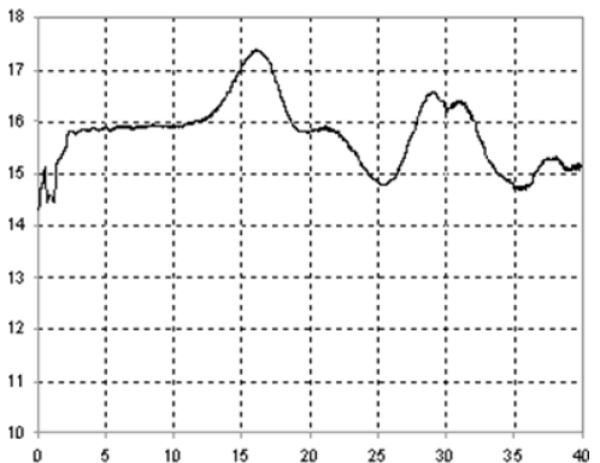

S21, 1 dB/div, 5 GHz/div

S22, 5 dB/div, 5 GHz/div

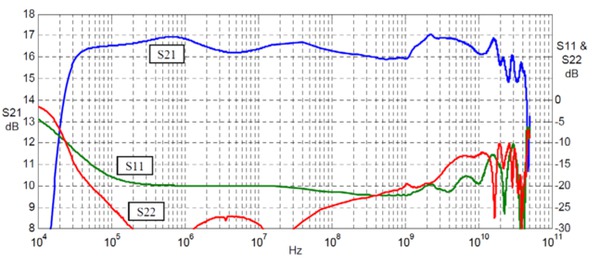

Typical S21, S11, and S22 from 10 kHz to 50 GHz

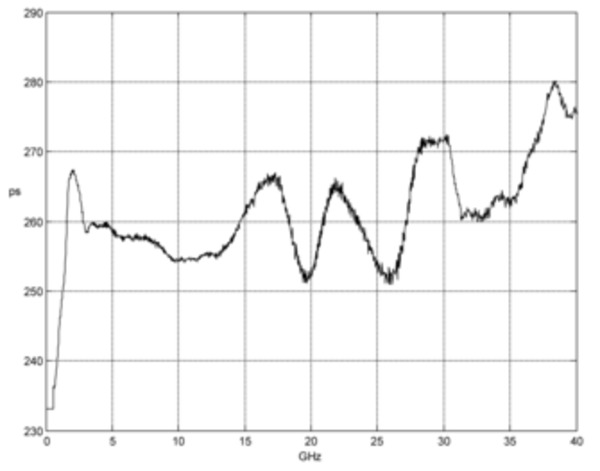

Typical Group Delay (10 ps/div, 5 GHz/div, 0.8 GHz aperture)

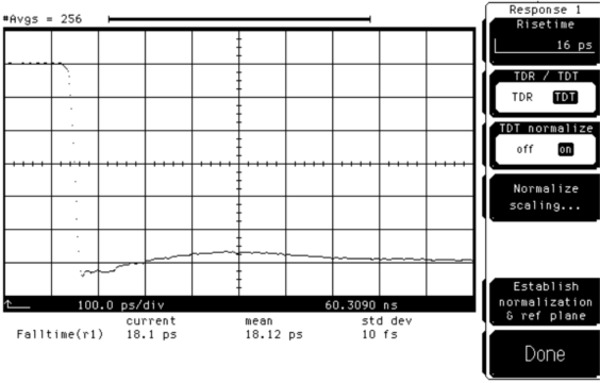

Typical Step Response (input signal is 16 ps fall time)

Specifications

Parameter	Symbol	Units	Minimum	Typical	Maximum	Comments
Impedance	Z	ohms		50
Upper 3 dB freq.	f_c,h	GHz	30	35		Relative to gain at 100 MHz
Lower 3 dB freq.	f_c,l	kHz		25	40
Small Signal Gain	S₂₁	dB	14.5	16		Measured at 100 MHz
Gain Ripple		dB		±1	±2	50 MHz
Max Power Out (-1 dB gain comp)	P_1 dB	dBm		12 11		f 25 GHz ≤ f
Output Eye Voltage	V_OUT	V_amp	2.4	2.7		V_in = 0.6 V_amp, 12.5 Gb/s PRBS
Input Return Loss	S₁₁	dB		-18 -10	-14 -8	50 MHz 10 GHz ≤ f
Output Return Loss	S₂₂	dB		-13 -10	-10 -8	50 MHz 10 GHz ≤ f
Rise Time	t_r	ps		9		10-90%, root-sum-of-squares extraction, 16 ps system rise time
Fall Time	t_f	ps		9
Overshoot		%		7		1 ns window, 16 ps system rise time
Undershoot		%		7		1 ns window, 16 ps system rise time
Noise Figure	NF	dB		6		Measured at 1.5 GHz
Group Delay Variation		ps		±20	±30	3 GHz 0.8 GHz aperture
Polarity	Non-Inverting
Coupling	AC, input and output
DC Connector	Solder pins
Voltage Supply (+)	+V_DC	V_DC	7	8	9
Voltage Supply (-)	-V_DC	V_DC	-5.5	-5	-4.5
Supply Current (+)	+I_DC	mA		155
Supply Current (-)	-I_DC	mA		10
Max Allowed Input		dBm			16	Input damage threshold
DC Voltage applied to RF Input or Output		V_DC	-4		8	Damage threshold
Operating Temp	T_CASE	°C	0		70	Case temperature
RF Connectors	2.92 mm or 2.4 mm jacks (f)
Warranty	One year

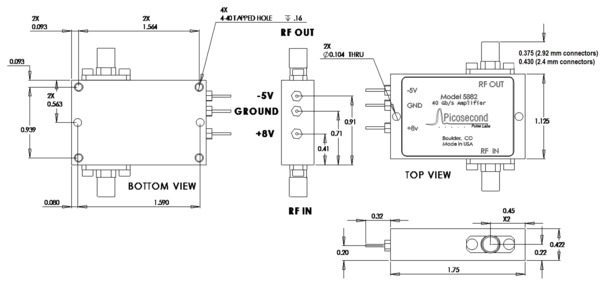

Mechanical dimensions

Ordering information

Models

PSPL5882: AMPLIFIER, 40-45 GHz, 16 dB GAIN

Options

Opt. 240JJ: Female 2.4 mm connectors on Input and Output
Opt. 292JJ: Female 2.92 mm connectors on Input and Output
